First let us see the basic information of UHMW-PE sheets :

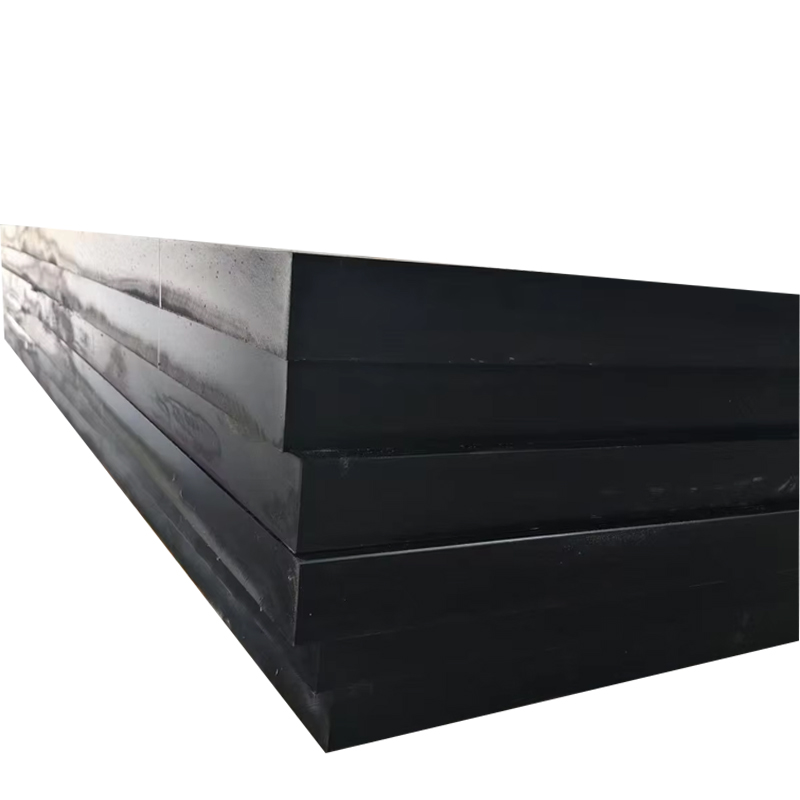

| Product Name | Engineering Plastic Wear Resistant UHMW-PE 1000 Sheet |
| Material | virgin UHMW-PE |

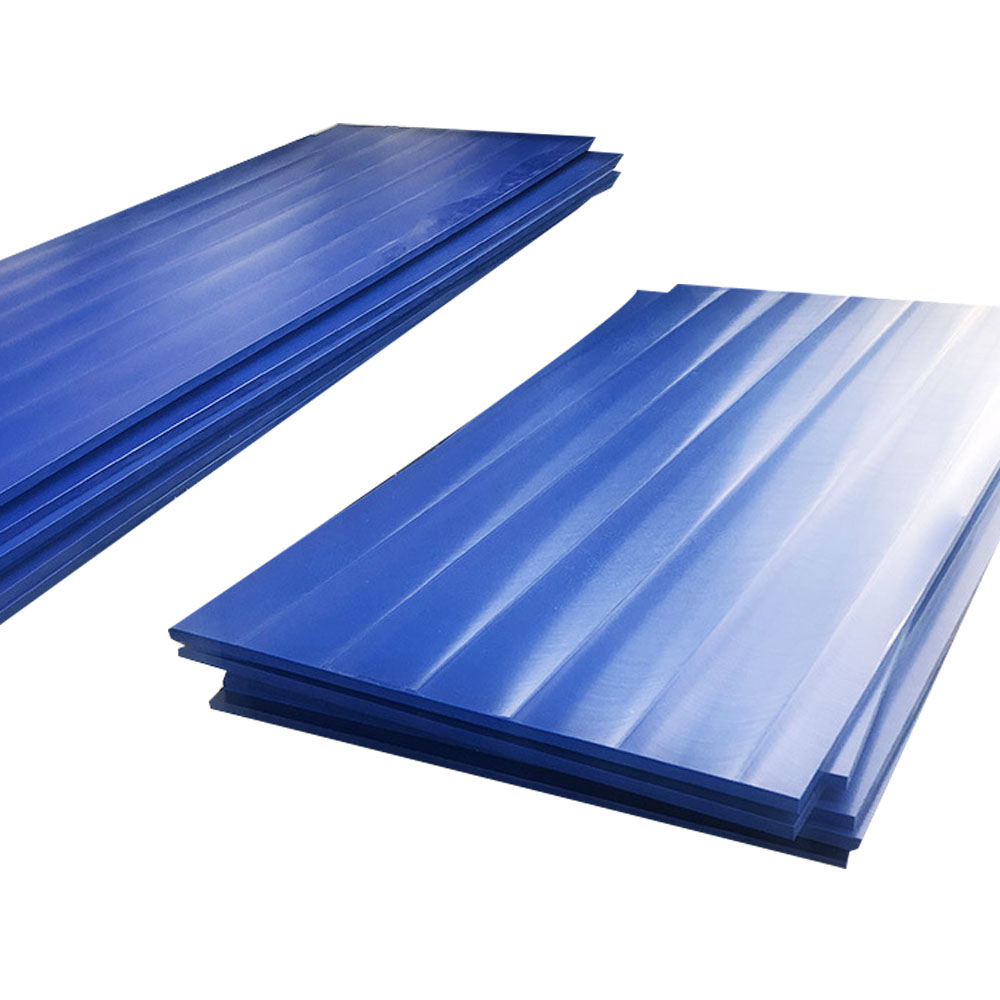

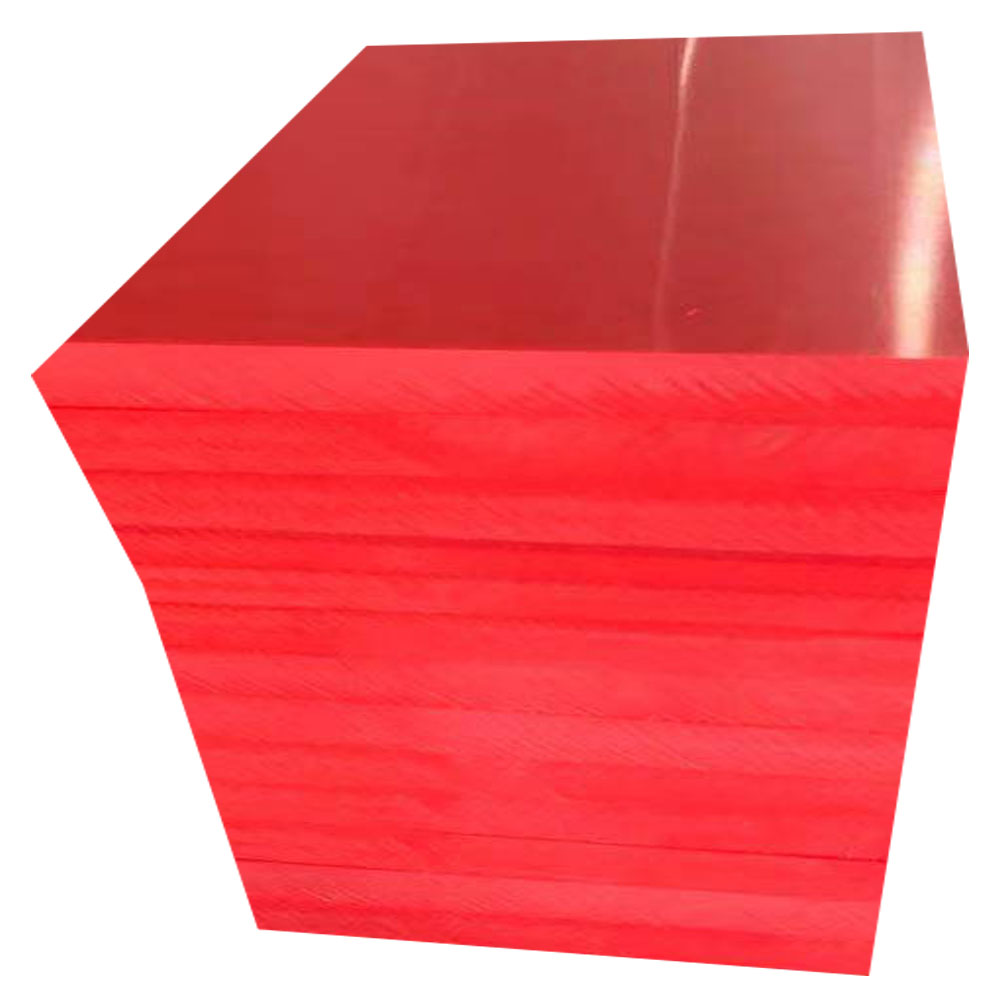

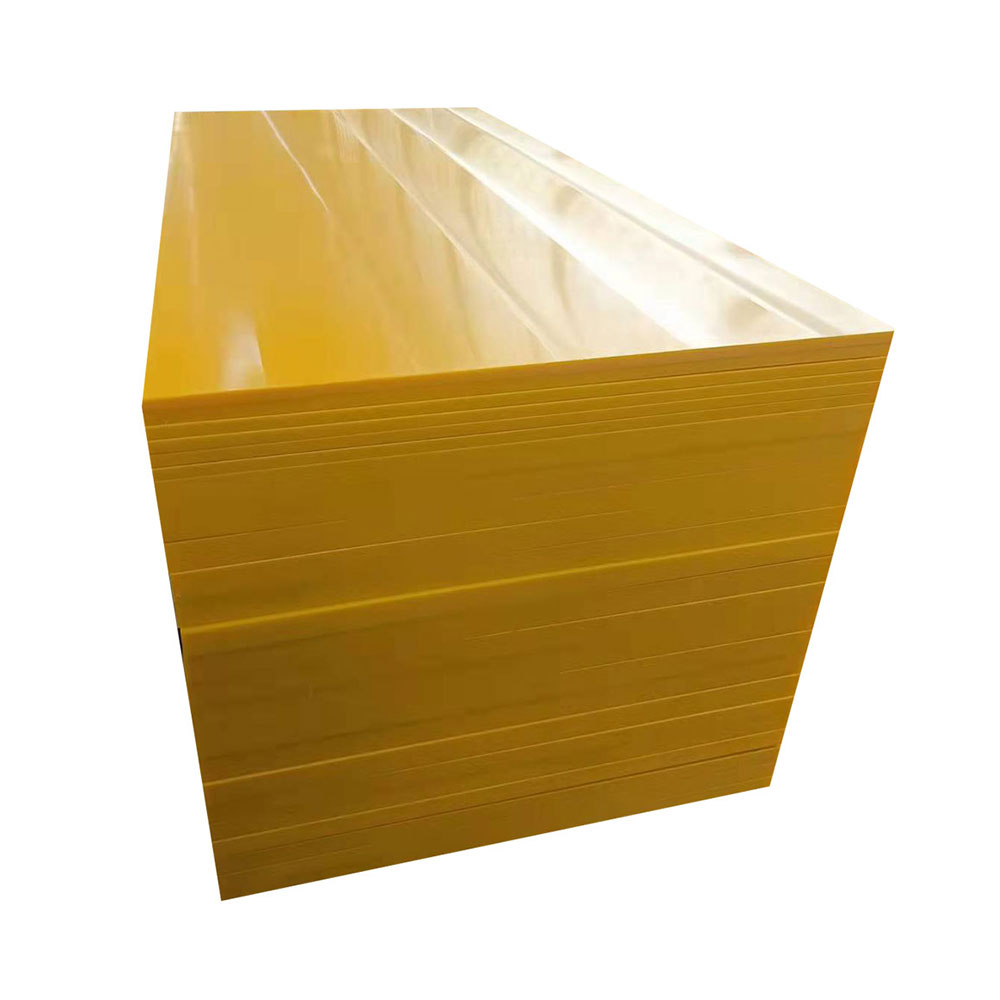

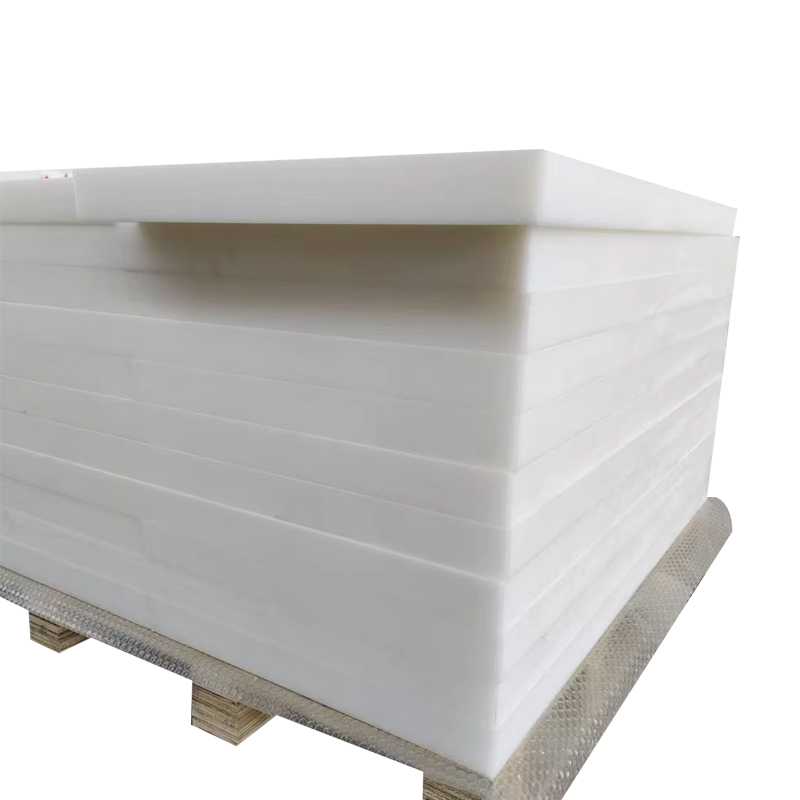

| Color | Black,white,yellow,blue,green....or customized |
| Thickness | -300mm |
| Shape | Sheet, board, block, rod, tube , gear, rack,pulley, guide rail, Plastics fittings,and so on |
| Size | Customized |
| Application | Textiles, Papermaking, Packaging, Transportation, Chemical, Mining, Agriculture, Construction, Electrical, Food,Medical, Sports and so on. |
| Package | Plastic bags,Cartons,Wodden case,Pallet,Container,ect. |
Do you wonder about UHMW-PE's physical properties to compare with other plastic?
| Project | UHMWPE / HDPE | PTFE | PA | POM |
| Density (g/cm3) | 0.96 | 2.2 | 1.25 | 1.45 |
| Minimum operating temperature (℃) | -269 | -180 | -40 | -40 |
| Maximum working temperature (℃) | 80 | 220 | 110 | 110 |
| Tensile breaking strength (Mpa) | 32 | 10 | 25 | 5.3 |
| Tensile elongation at break (%) | 320 | 100 | 200 | 25-75 |
| Average wear rate (%) | 1 | 4 | 3-5 | 6 |
| Impact strength (KJ/M) | ≥140 | 16 | 6-11 | 8-13 |
| Water absorption (%) | <0.01 | <0.02 | 1.5 | 0.25 |
| Friction factor | 0.07-0.11 | 0.04-0.1 | 0.15-0.4 | 0.15-0.35 |
| Non-toxicity | Y | N | Y | Y |

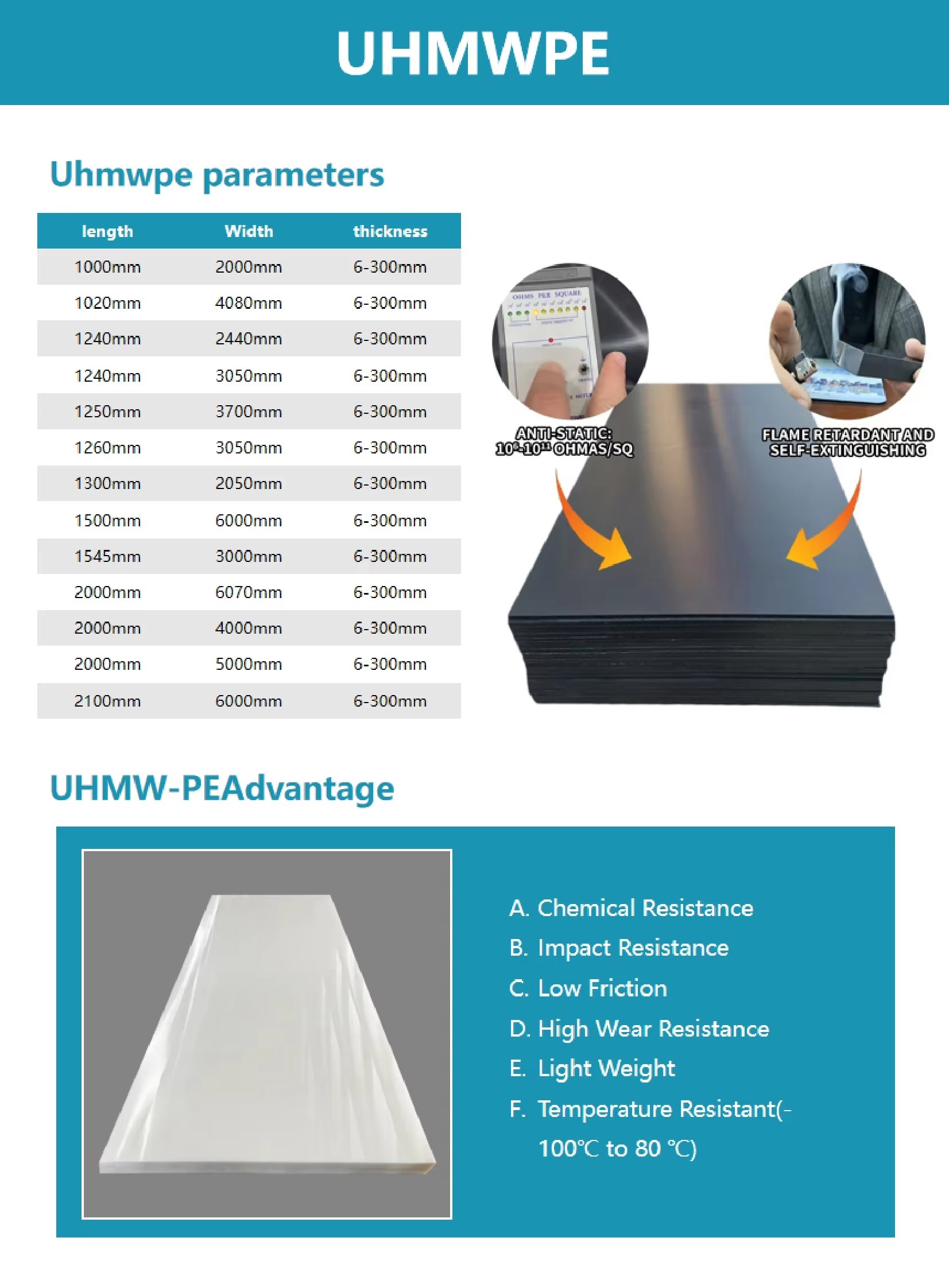

After checking above knowledge , believe you are more familiar with Shunqi UHMW-PE sheets , please follow below format to find the suitable size for you . And please kindly remember , following A-F item are the basic property advantages , if the special anti-static or anti-flame property is needed such as they will used in underground project or mining industry , no problem to make it !
