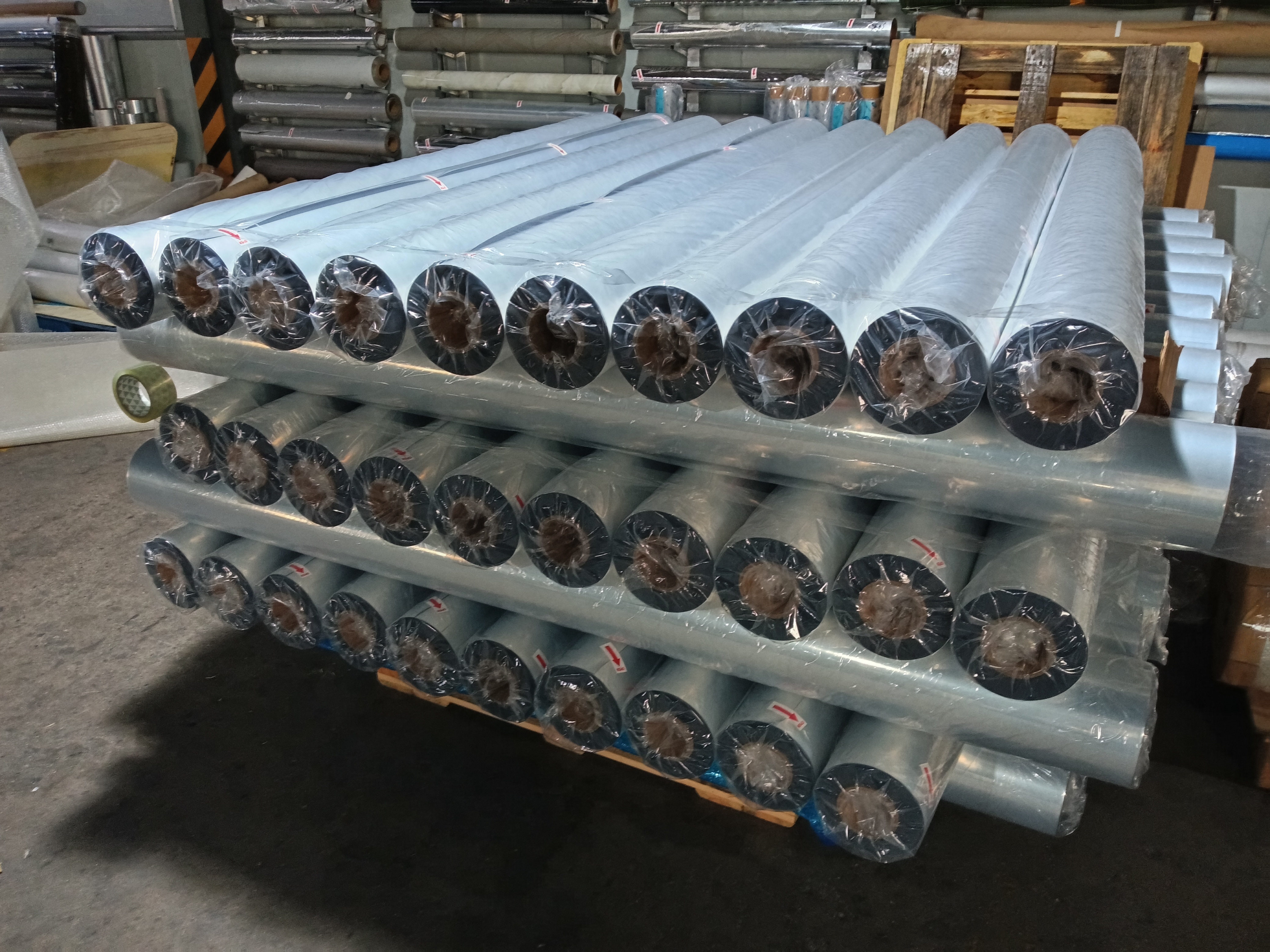

Metallized Aluminum Polyester (PET) Film Reflective Mylar
Metallising of PET film under vacuum conditions is a proven technology to achieve special optical properties and reduce diffusion of gases and flavors through the film. The most commonly used metal is aluminum but other metals can be applied also.
Metalized PET film for Cardboard and Insulation Solution
Width: 50mm - 2540mm
Standard Width: 1020mm, 1050mm
Length: 3,000m - 50,000m
Application: used for cardboard lamination or PE coating for insulation material.
Optical Density (OD): 0.2 - 3.5
Due to its high surface energy a high metal adhesion as well as good homogeneity of the metal layer is achieved, leading to high oxygen and general gas barrier as well as a significant improvement of the water vapor barrier.
The PET film Shunqi Metallising Division use offers a variety of adhesion promoting Polyester film along with combinations of plasma gases to get excellent metal adhesion and good homogeneity of the metal layer is achieved, leading to high oxygen and general gas barrier as well as a significant improvement of the water vapor barrier.
More details of the Metallized Aluminum Polyester (PET) Film Reflective Mylar
| Specification | |
| Structure | Metalized PET + PE Film Metalized PET + PE Film + Metalized PET Aluminum foil+PET+PE PET+ Aluminum foil+PE |
| Thickness | The nominal thickness is determined by the total thickness of the materials:(6-12 mic) Metallized PET film + (6-25 mic) PE The total thickness of the material: ≤ 35 mic VMPET thickness:6,7,8,10,12micron and so on |
| Alu foil | 6.5,7,9,18,30 micron or as request |
| Package | PE Bag/Pallet/Wooden Case |
| Material width | 400 - 2200 mm |
| Tensile Strength(MD) | >100.0 Mpa ASTM D-882 |
| Tensile Strength(CD) | >65.0 Mpa ASTM D-882 |
| Breaking Elongation(MD) | >60.0 % ASTM D-882 |
| Breaking Elongation(CD) Peeling Strength(MD) | >100.0 % ASTM D-882 >1.2 N/15mm ASTM D-882 |
| Peeling Strength(CD) | >1.2 N/15mm ASTM D-882 |
