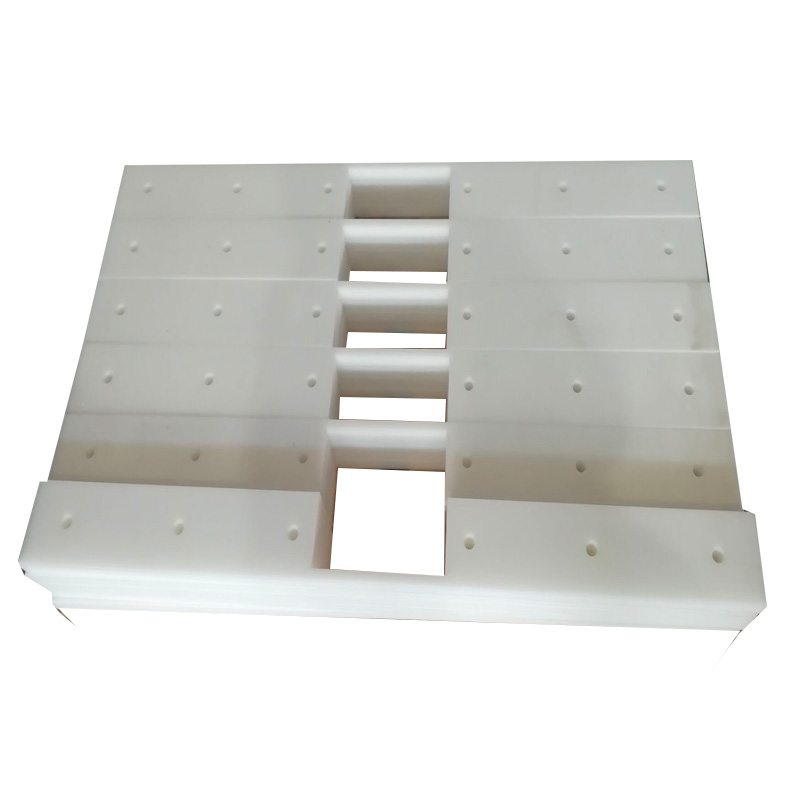

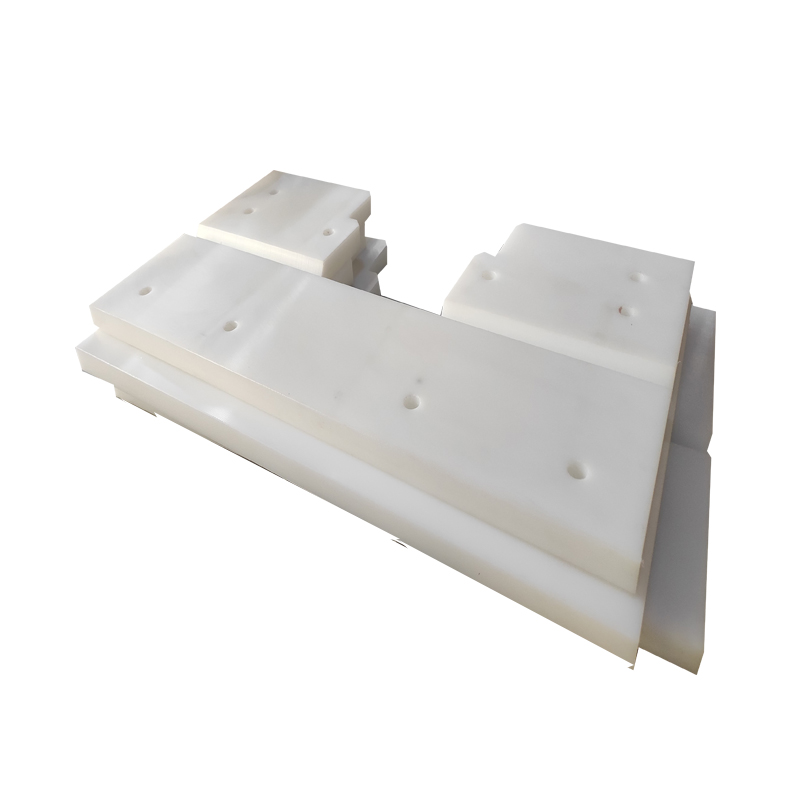

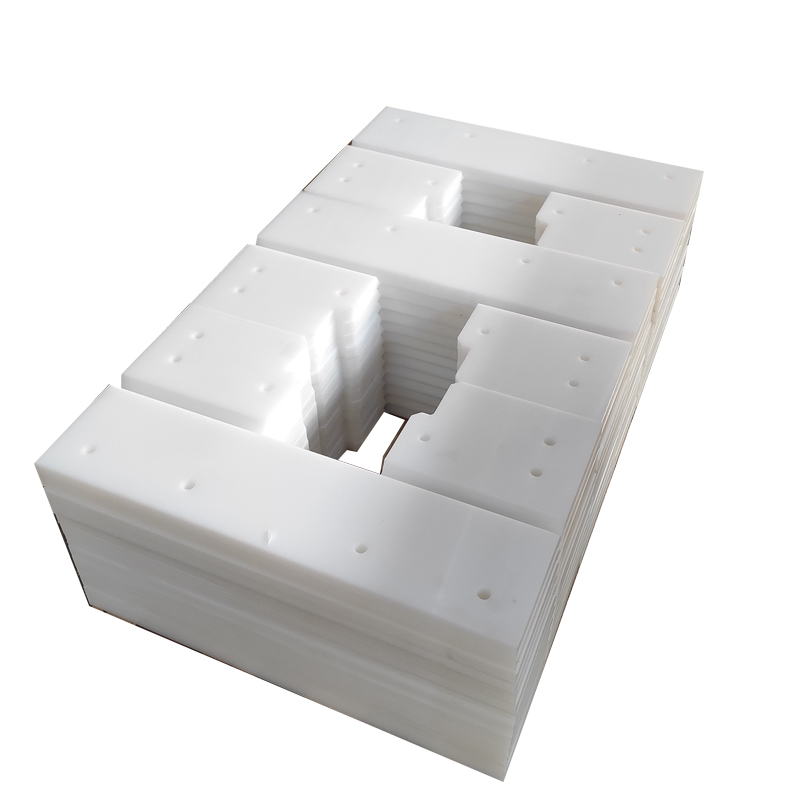

UHMW-PE drag conveyor flight paddles/ scraper blade for Pulp and Paper industry

UHMW-PE drag conveyor flight paddles/ scraper blade for Pulp and Paper industry

UHMW-PE material flight paddles / scraper blade , are widely used in machinery industry , medical industry , mining industry , vehicle manufacturing and transportation industry , paper industry , textile industry , food and light industry , ceramic industry and other fields .

Model:
SQ16008
Brand:
SQ
Code:
SQ16008

Availability:

Quantity:



Inquire Add to Basket

Product Description

UHMW-PE drag conveyor flight paddles/ scraper blade for Pulp and Paper industry

UHMW-PE drag conveyor flight paddles/ scraper blade for pulp and paper industry are produced to the drag conveyor manufacturer’s design. All edges are square. Beveled edge flights will be quoted
on request. Custom round bottom flights are available on special order.

material: Polyethylene: Virgin UHMW (Ultra high molecular weight).

NOTE: UHMW has a thickness tolerance of ±0.5mm.

METHOD OF MANUFACTURE: Machined by CNC milling .

INTERCHANGEABILITY: Can be intermixed with existing metal, rubber or plastic flights.

INSTALLATION: Caution: Place a flat steel washer on the front side of the flight next to the plastic.

Friendly remind : It is ideal for food handling.

Actually the UHMW-PE material can be processed with other high wear parts for machinery , please see below detailed info :

Material	virgin UHMWPE (UHMW polyethylene)
Service	any design can be made as request
Color	black/white/yellow/blue/red/orange or as request
Application	coal, cement, lumber, paper, steel, grain, canning， mining and manufacturing. in the industry for guiding belts, chain and cables designed to fit most bulk material handling chains Chair and belt guides Wear strips Corner tracks Spiral Conveyors guide rails Other construction parts and components Power transmission and conveying industries or components Conveying, assembly and material handling industries Port construction and offshore platforms Parcel chutes Track and guide rollers Sliding and drive components in the food industry Many components in the paper industry, such as; forming boards, foils and low vacuum foils, deflector strips and suction blades, suction box covers, sealing strips Also used in the filter industry Deflector strips and suction blades Sealing strips Guide rails and neck guides in filling and packaging industries Demanding applications in the paper industry Tivar H.O.T. Applications Sliding and drive components in the food and conveying industry Bakeries Food processing and packaging Candy industry Chemical industry Sliding and drive components in the food and pharmaceutical industry Railway Vehicle manufacturing Building and construction General mechanical engineering Borotron UH & HM Applications Shielding in nuclear installations
Better than steel flight paddles	unlike metals, it will not rust due to its high resistance to acids and alkalis outwear abrasion-resistant steel by 3 to 1 and UHMWPE by 5 to 1
Key Features and Benefits	These wear flight paddles offer low friction wear surface for chains and ensure smooth & noiseless conveying. UHMW-PE material to ensure minimum friction and maximum wear resistance.

Properties of UHMW-PE drag conveyor flight paddles/ scraper blade for Pulp and Paper industry

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient		≤0.16
Kinetic Friction Coefficient		≤0.10
Water Absorption		NIL
Elongation at break at 23°C	%	≥300
Melt Temperature	°C	130-140
Temperature Resistance	°C	-269 to +85

Advantage of UHMW-PE drag conveyor flight paddles/ scraper blade for Pulp and Paper industry

1. Doesn't wear easily

Having an incredibly high molecular weight,WEAR RESISTANCE UHMWPE CONVEYOR PADDLE POLYETHYLENE UHMW Flights for drag conveyor proves its true worth not only in regards to sliding with metal faces, but also sand, powder and other fields where normal wear-resistant materials struggle.

2. Excellent sliding ability

WEAR RESISTANCE UHMWPE CONVEYOR PADDLE POLYETHYLENE UHMW Flights for drag conveyor has an extremely low friction coefficient. It is comparable to PTFE, which also slides well.

3. Doesn't crack easily
WEAR RESISTANCE UHMWPE CONVEYOR PADDLE POLYETHYLENE UHMW Flights for drag conveyor has a level of shock resistance simply not found in other materials. Does not break easily unless affected chemically.

4. Non-adhesive

Highly non-adhesive. With a non-adhesiveness second only to PTFE, WEAR RESISTANCE UHMWPE CONVEYOR PADDLE POLYETHYLENE UHMW Flights for drag conveyor is optimal as a material for the inner liners of containers such as hoppers, silos and chutes.

5. Non-toxic and safe

A physically non-toxic material. Great for use with food products,WEAR RESISTANCE UHMWPE CONVEYOR PADDLE POLYETHYLENE UHMW Flights for drag conveyor can also be used in the medical field.

6. Difficult to penetrate

WEAR RESISTANCE UHMWPE CONVEYOR PADDLE POLYETHYLENE UHMW Flights for drag conveyor Features excellent chemical resistance.

7. Doesn't absorb water.

WEAR RESISTANCE UHMWPE CONVEYOR PADDLE POLYETHYLENE UHMW Flights for drag conveyor has an absorption rate of virtually zero, therefore its strength does not deteriorate due to swelling caused by water absorption.

Just send us your drawing , and let us do the left job for you . Contact +86 18562140868 (whatsapp )
