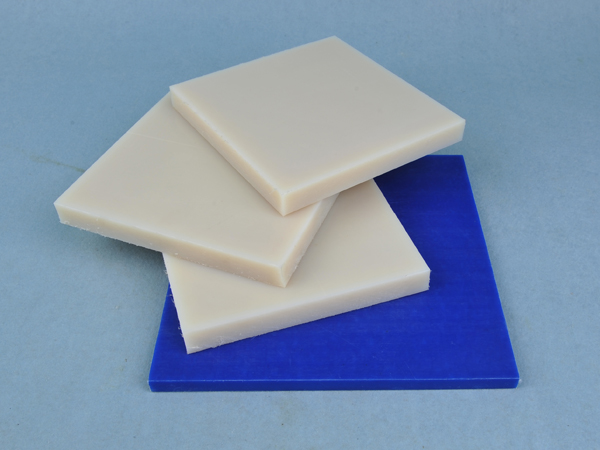

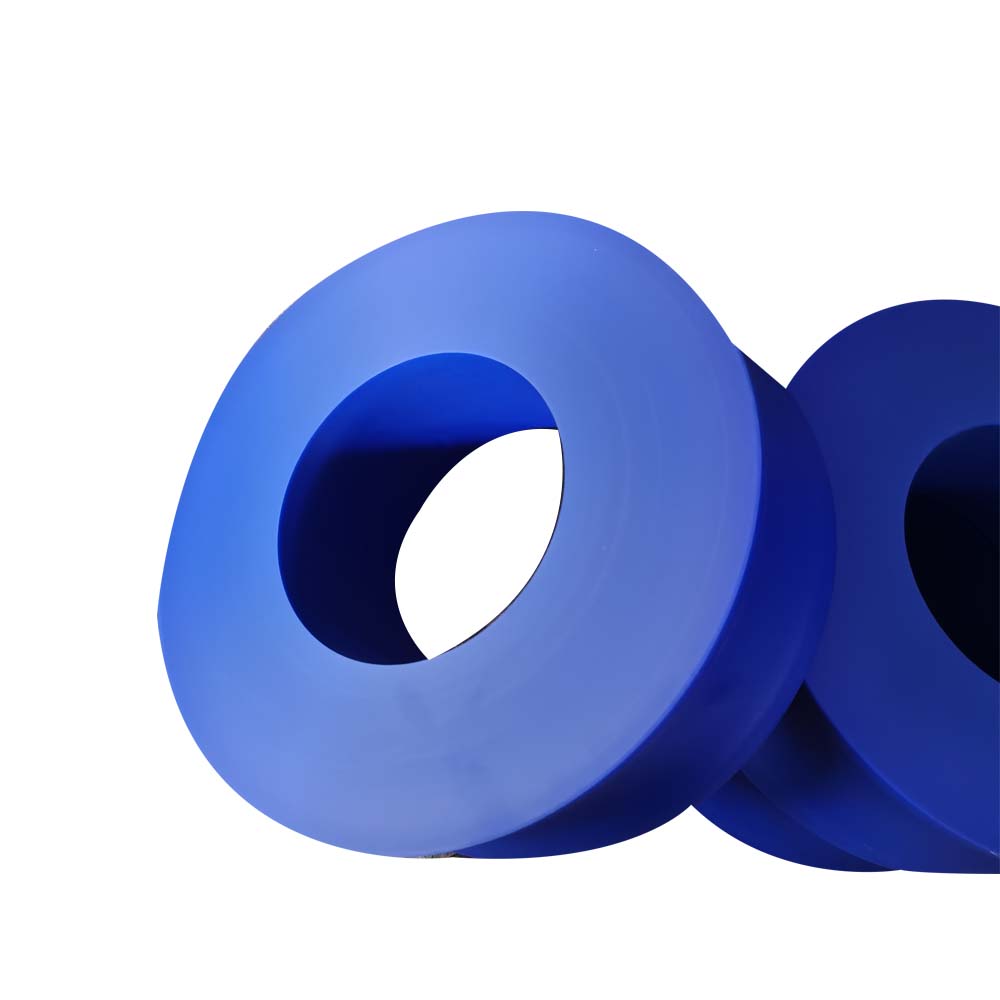

Hardness MC / PA6 Nylon Board Sheet Rods

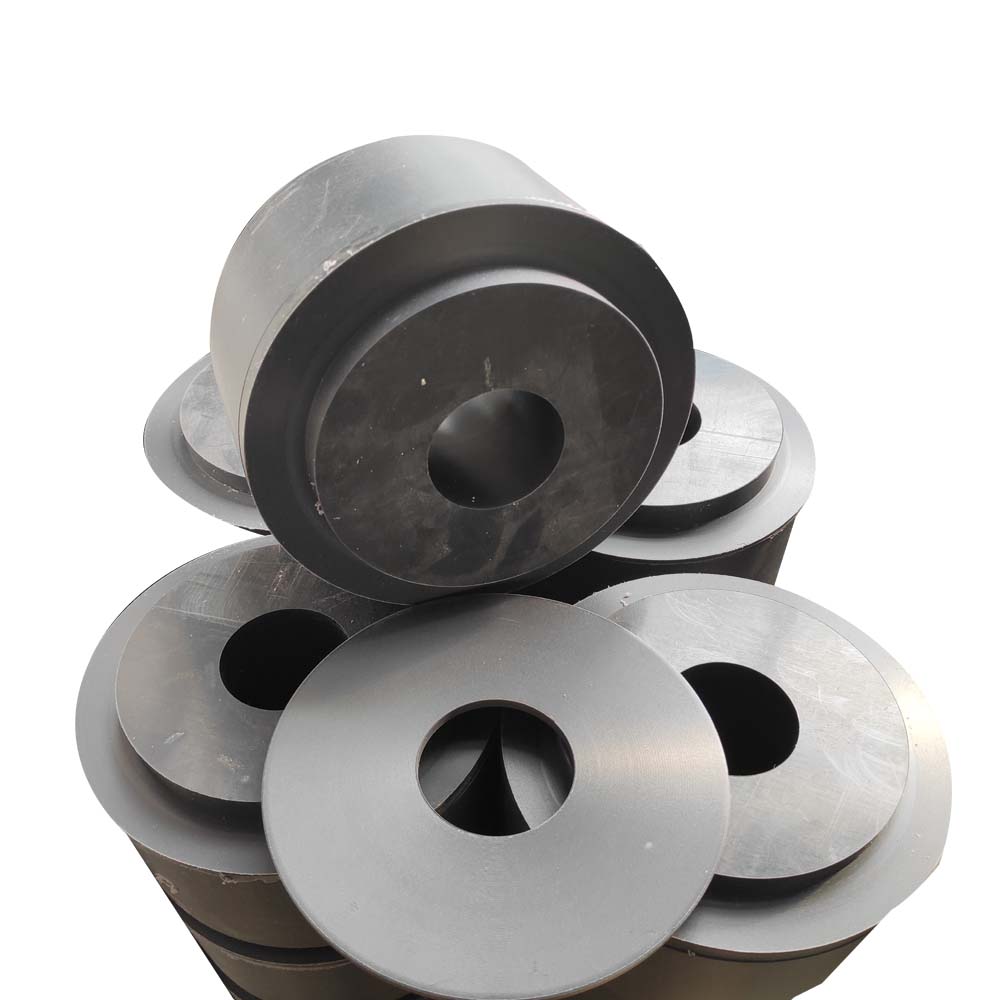

Shunqi Nylon rod, nylon sheet and nylon machining parts have a proven record of outstanding service in a multitude of parts for such diverse fields as paper, textiles, electronics, metalworking,mining, aircraft, food and material handling . Diversified sizes , colors and shapes all can be customized in our factory .

Model:
SQ16011
Brand:
SQ
Code:
SQ16011

Availability:

Quantity:



Inquire Add to Basket

Product Description

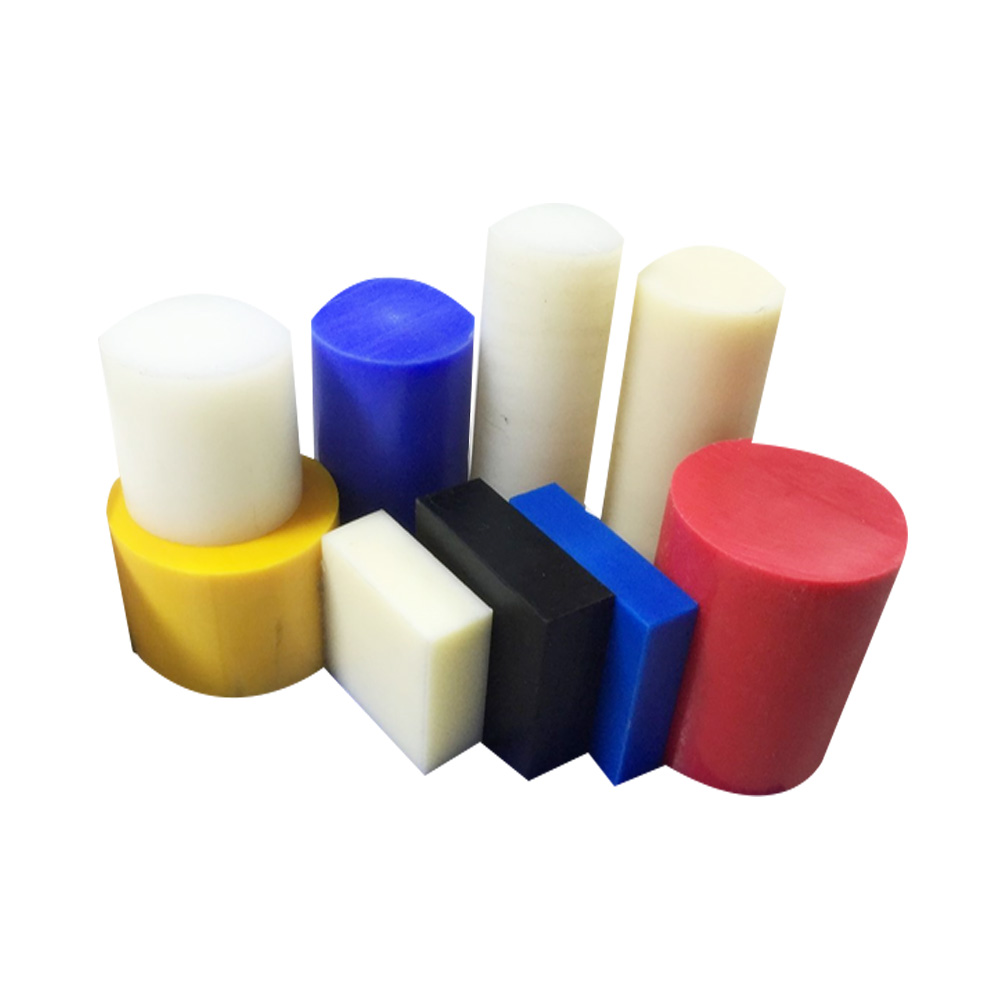

Nylon’s toughness, low coefficient of friction and good abrasion resistance make nylon rod, nylon sheet and nylon tube an ideal replacement for a wide variety of materials from metal to rubber - it weighs only 1/7th as much as bronze.

Using nylon rod, nylon sheet and nylon tube reduces lubrication requirements, eliminates galling, corrosion and pilferage problems, and improves wear resistance and sound dampening characteristics.

Nylon sheet is also an ideal material choice when manufacturing thermal breaks for use in construction projects as a thermal insulator (break) between steels. For more information about our thermal break cutting service please contact us to discuss your requirements

Main properties of our range of nylon sheet, nylon rod are that :
high mechanical strength, stiffness, hardness and toughness
good fatigue resistance
high mechanical damping ability
good sliding properties
excellent wear resistance
good electrical insulating properties
high resistance against high energy radiation (gamma and X-rays)
good machinability

What is the difference between cast and extruded Nylon ?

The main difference lies in the manufacturing process. Cast polyamide products are manufactured by means of a chemical reaction process. This allows products with extremely large dimensions and custom cast parts to be manufactured. Water absorption and dimensional changes are lower in CAST. The crystallinity is greater so that wear resistance and machinability are better. Extruded absorbs more moisture and is thus tougher and has greater impact and vibration damping properties.

Nylon sheets and rods Application :

Good mechanical properties and resistance to heat and fuels, make these materials suitable for mechanical and electrical, hardware and under-the-hood components.

Examples are: Timing sprockets, Speedometer gears, Cooling fans, Wire connectors, Windshield wiper parts, Door-latch hardware, Molded fender extensions, Steering-column lock housings, Brake fluid reservoirs, Bearings.

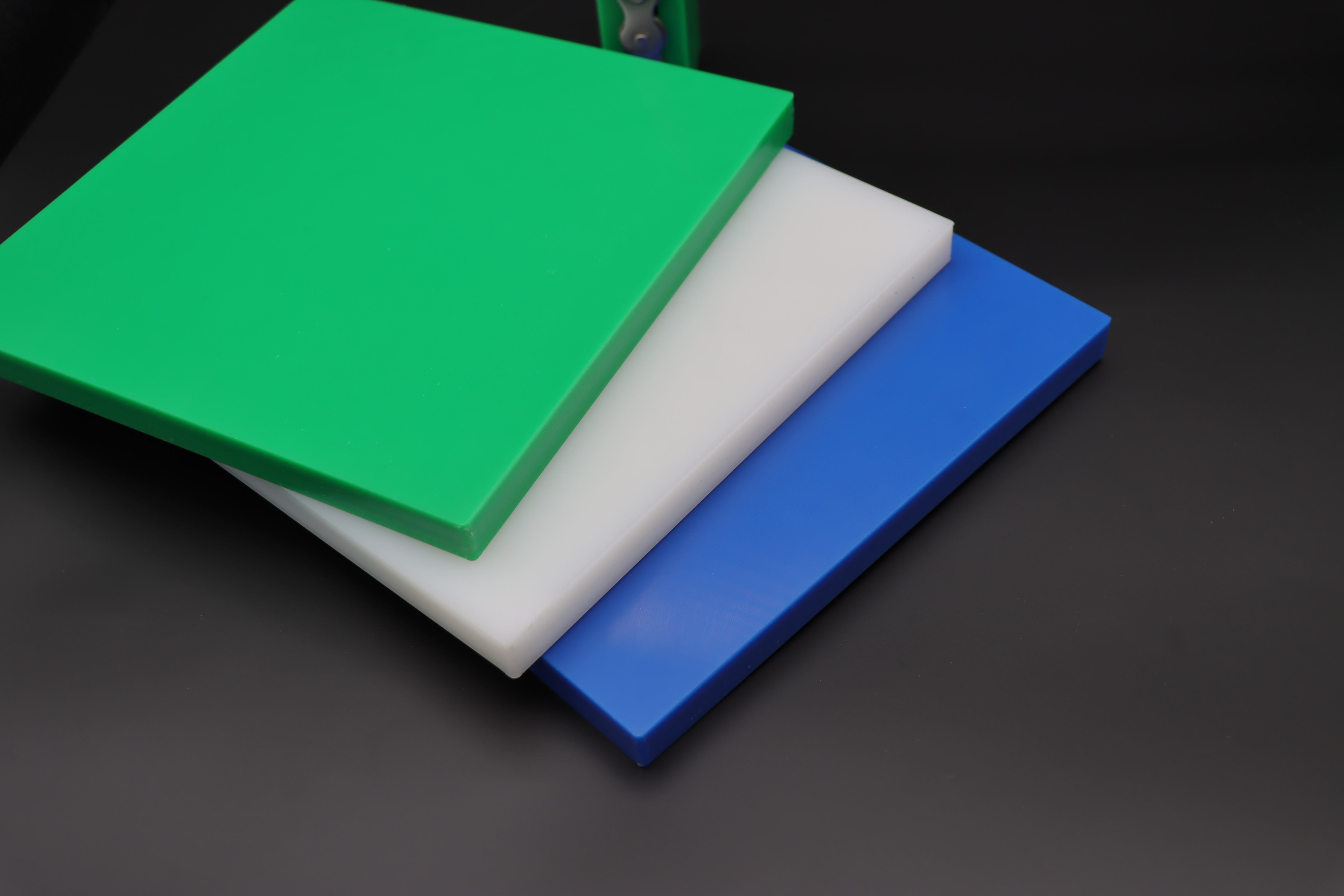

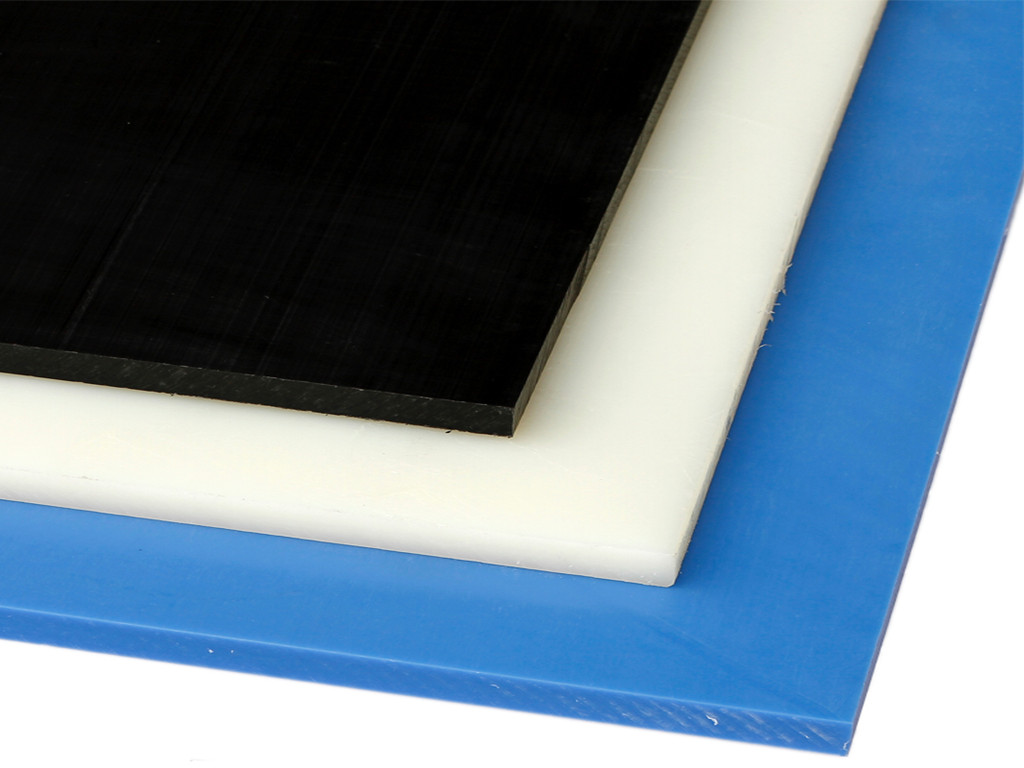

Nylon Sheet Sizes:

Thickness	Sizes	Colors
1mm~100mm	1000mm x 1000mm	White, Black, Bule, Green etc (As customers' requirements)
1mm~100mm	1000mm x 2000mm
100mm~150mm	1000mm x 1000mm
150mm~200mm	500mm x 500mm

Mechanical Property :

Property	Unit	PA6	PA66	PA-GF30	PA Anti static	PA Conductivity
Density	g/cm3	1.13	1.14	1.34	1.12	1.24
Long Term Working Temperature	°C	85	95	120	100	105
Yield Stretch Strength	Mpa	74	90	140	50	55
Beaking Stretch Strength	Mpa	50	40	5		60
Beaking Stretch Rate	%	5		3.5	100	5
Bending Modulus	Mpa	2200		4500	2200	2200
Hardness	Mpa	85	88			80
Impact Strength	KJ/M2	50	55	180	45	45
